Lámpara de reconocimiento de pared LED – Serie L21-25 | Iluminación médica profesional
Precision, power and ergonomics in optimized clinical spaces

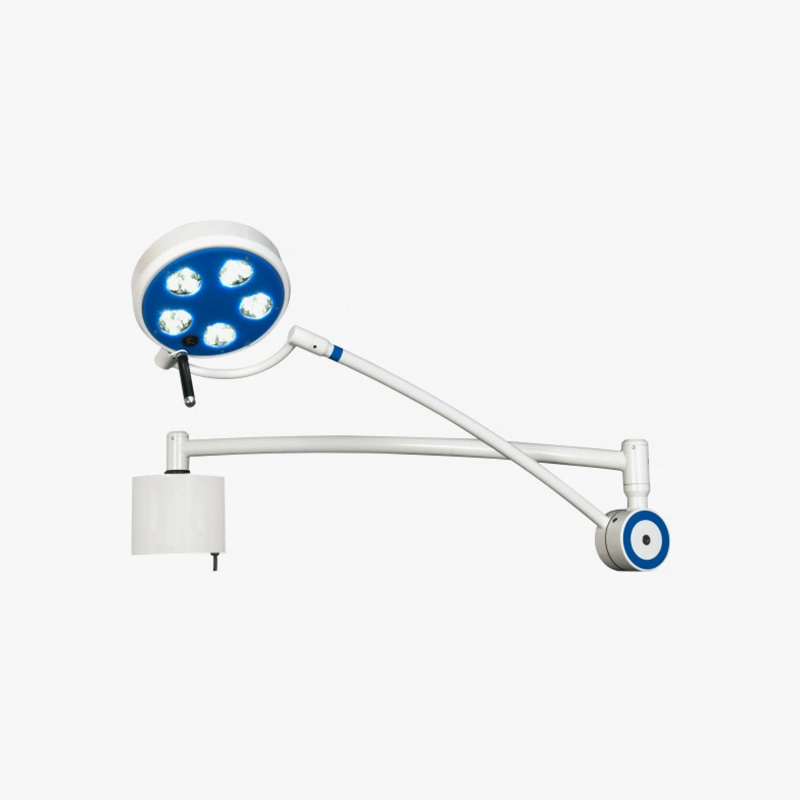

The wall-mounted procedure lamp for the L21-25 series is the perfect solution for clinics and consulting rooms requiring high luminosity (50,000 lux) without sacrificing space. Its wall-mounted design allows a fixed and ergonomic installation, optimizing the working area and ensuring shadow-free illumination for all types of medical procedures.
Precision, ergonomics, reliability and functionality are some of the qualities that define the surgical lights of the L21-25 series.
High-performance lighting: With its 50,000 LUX at 1 meterThe light source provides an intense, homogeneous and glare-free light, ideal for diagnostics and small interventions.
Ergonomic wall mounting: Designed to be fixed to the wall, it allows functional and unobstructed use in the examination or treatment area.
Hygienic and easy to clean: Smooth surface, without crevices, compatible with clinical environments requiring frequent disinfection. Removable and sterilizable handle.
Precise adjustment: Articulated arm system and swivel head for fast and accurate positioning, even during the procedure. Its great freedom of movement allows us to position the dome according to the needs of each examination.
- Shadow-free illumination for greater precision.
- Space saving without compromising functionality.
- Fast and safe wall installation.
- Low energy consumption and minimum maintenance.
| Features | Specifications |
|---|---|
| Luminous intensity | at 1 m: 50,000 lux at 0.8 m: 62,000 lux at 0.5 m: 87,000 lux |
| Color temperature | 5,000 ºK |
| Ra | > 95 |
| Diameter of working field | D10: Ø33 cm - D50: Ø17 cm |
| Depth of field | L1+L2 = 164 cm |
| Light source | LED |
| Average LED life | 50.000 h |
| Lamp voltage | 12 V |
| Power | 50 W |
| Field regulator | No |
| Intensity regulation | Optional / Optional series L21-25V |
| Voltage | 100 - 240 V / 47-63 Hz |
| Sterilizable handle | Yes / Yes |
| Dome size | Ø 215 mm |
| Material | Aluminium painted / Aluminium painted |
| Color | RAL 9002 |
| Weight | L21-25TD double ceiling / double ceiling: 19,5 Kg L21-25R rollable / moveable: 12.5 Kg L21-25T techo / ceiling: 10,5 Kg L21-25P pared / wall: 7,5 Kg |
- General medical consultations
- Health centers and primary care
- Dental clinics
- Gynecology and dermatology
- Emergency and outpatient procedures
