DRGEM GXR 32KW | Veterinary X-Ray System
The DRGEM GXR 32kW X-Ray Systemof the VXR Veterinary X-Ray seriesis designed for veterinary environments that require accuracy, reliability and speed. Equipped with high-frequency technology, anatomical programs and remote diagnostics, it offers an optimized workflow for clinics and hospitals.
- Compatible with DR systems
- Intuitive touch interface
- Modular and configurable design
Content included:
- X-ray generator GXR 32kW HF
- Control console with touch screen
- 4-way floating table with longitudinal and lateral movements
- Floor-ceiling column or wall bracket
- Collimator with manual control and timer
- Toshiba E7239X X-ray tube (focus: 1.0/2.0 mm)
- Remote diagnostics via Internet connection.
- Graphic interface with LCD display.
- Display of kV and mA waveforms.
- Overload and overheating protection.
- Preloaded anatomical programs (APR): up to 1,280 configurations.
- Automatic exposure control (optional).
Content Included:

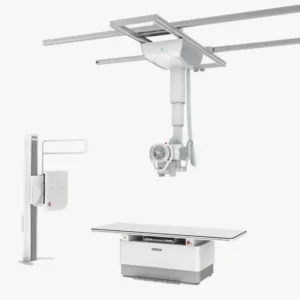

- X-ray system with ceiling suspension.
- High frequency generator.
- Elevating patient table.
- Automatic chest stand.
- Digital flat panels (fixed and wireless).
- Image acquisition and processing software.
- Control console with touch screen
| Specification | Detail |
|---|---|
| Power output | 32 kW (model VXR-32) |
| kV range | 40 to 125 kV (1 kV increments) |
| mA range | 10 to 400 mA |
| Range of mAs | 0.1 to 500 mAs (optional: up to 1000 mAs) |
| Exposure time | 0.001 to 10 s (38 steps) |
| Frequency | 50/60 Hz |
| Control accuracy | kV ±1%, mA ±3%, Time ±1%, mAs ±3% |
| Reproducibility | kV < 0.005, Time < 0.005, mAs < 0.01 |
| Maximum field size | >43 x 43 cm to 100 cm FFD |
| Remote diagnostics | ? Yes |
| Anatomical programs (APR) | ? Yes, more than 1,200 presets |
- General diagnosis in small and large animals
- Equine radiology (extremities, thorax, abdomen)
- Use in mobile clinics, hospitals and specialized centers
Professional attention
For 4D Médica, product development begins and ends with the customer in mind; it engages clinics, specialty practices and even mobile facilities by working hard every day to deliver high quality patient care.
Maintenance service
The fundamental pillar of the company is a solid and efficient Technical Service team, highly qualified, in continuous specific training in all diagnostic imaging equipment and modalities.
Personalized advice
Implementation studies, implementation reports with calculation of radioprotection barriers, 3D simulation prior to installation and even possible sale. Completely FREE services
