4DCR SPARK 4DCR Digital Radiology System
The 4DCR SPARK is an advanced digital computed radiology (CR) system. designed especially for the veterinary sector, offering a compact, efficient and high quality solution for clinics with any workload. Its ultra-lightweight design and wall-mounting capability make it ideal for facilities with limited space, without sacrificing performance or image quality.
Thanks to its FireCR technologyThe 4DCR SPARK delivers sharp, high-resolution images that enable accurate diagnoses in a wide variety of clinical applications. It supports up to 70 plates per hour (in its SPARK 70 version), and is compatible with various cassette sizes, including standard formats and a unique veterinary dental cassette, making it a flexible solution for general, specialized or mobile practices.

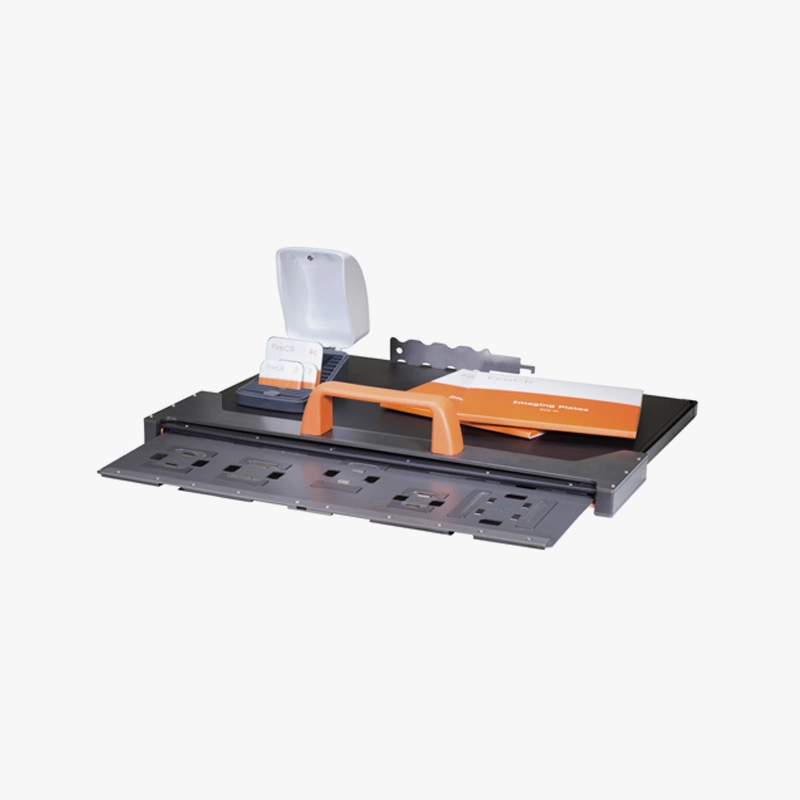

Unique with veterinary dental chassis. (Optional)
- High image resolutionProvides detailed images for accurate diagnosis.
- Reading speed: Capable of processing up to 70 plates per hour, optimizing workflow in high-demand environments.
- Compact and portable designIts light structure facilitates its transport and allows its installation in limited spaces.
- Robust chassisEquipped with new, stronger and more durable chassis, suitable for demanding clinical environments.
- Rigid imaging plates (IP)It uses non-rolling and non-manipulable IPs, which prolongs their lifetime and maintains image quality.
- Compatibility with multiple chassis sizesThree different chassis sizes are supported, including a veterinary dental option (optional).
- Automatic chassis controlEase of operation and reduction of manual handling time.
- Scanning and deletion in one stepSimplifies the digitization process, increasing efficiency.
- Fanless system: Designed to prevent contamination by dust or hair, ideal for veterinary environments.
- Quiet and maintenance-free operation: Reduces noise in the clinical environment and minimizes maintenance needs.
- Quantor Vet software includedProvides advanced tools for image viewing and management.
- TechnologyComputed Radiology (CR) FireCR
- Resolution: 100 µm (high) / 200 µm (standard)
- Reading speed:
- SPARK 70: up to 70 plates/h
- SPARK 50: up to 50 plates/h
- SPARK 30: up to 30 plates/h
- Supported cassette sizes35×43 cm, 24×30 cm, 18×24 cm, 18×24 cm
- Veterinary dental cassette: exclusive, compatible with size 0 to 4 plates
- Assembly: desktop or wall
- Weight: 21 kg
- Dimensions: 137 × 456 × 803 mm
- Software included: QuantorVet+ (DICOM compatible, viewer, image manipulation, PACS)
- Operationquiet, fan-less, ideal for clinics with limited space
- Other functions: read and erase in one step, dust-free, closed system, no contact with the plate
- Image captureThe patient is positioned and the X-ray exposure is performed on a reusable phosphor-coated imaging plate.
- Plate readingThe plate is inserted into the 4DCR SPARK reader, where a laser excites the stored electrons, releasing energy in the form of visible light.
- Conversion to digital imageThe emitted light is captured by sensors that transform it into electrical signals, which are converted into a digital image by an analog-to-digital converter.
- Processing and storageThe digital image is processed and stored, and is available for viewing, editing or distribution.
